In the rapid development of the new energy industry, high-reliability and high-performance electronic control and communication modules have become the key to ensuring the stable operation of the power system. This case focuses on the core board card components applied to the 125kW converter valve and the SVG controller, covering three major functional categories: communication, signal acquisition and main control. All information is strictly compiled based on the provided content and no external data or speculation has been added.

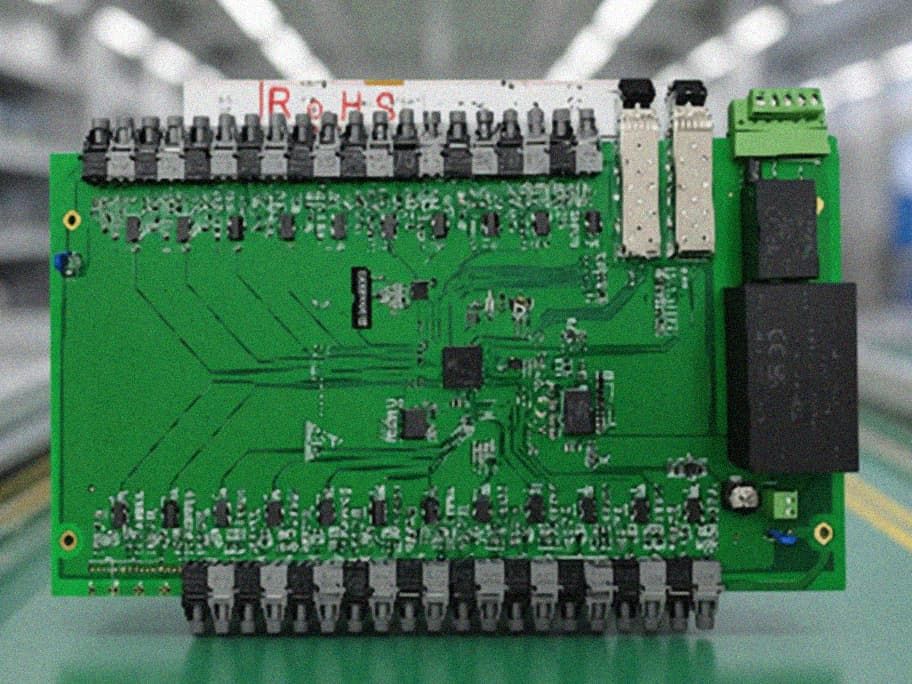

The Optical Conversion Communication Board is a core communication module specially designed for high-speed optical signal processing and conversion, mainly serving 125kW converter valves and SVG controllers. This board supports high-speed optical signal transmission and has passed multiple verification methods such as ICT (Online Test), FCT (Functional Test), high-temperature aging test and vibration test to ensure the long-term trouble-free operation of the equipment under harsh working conditions. It is widely applied in the power industry, providing stable and secure communication support for critical power equipment.

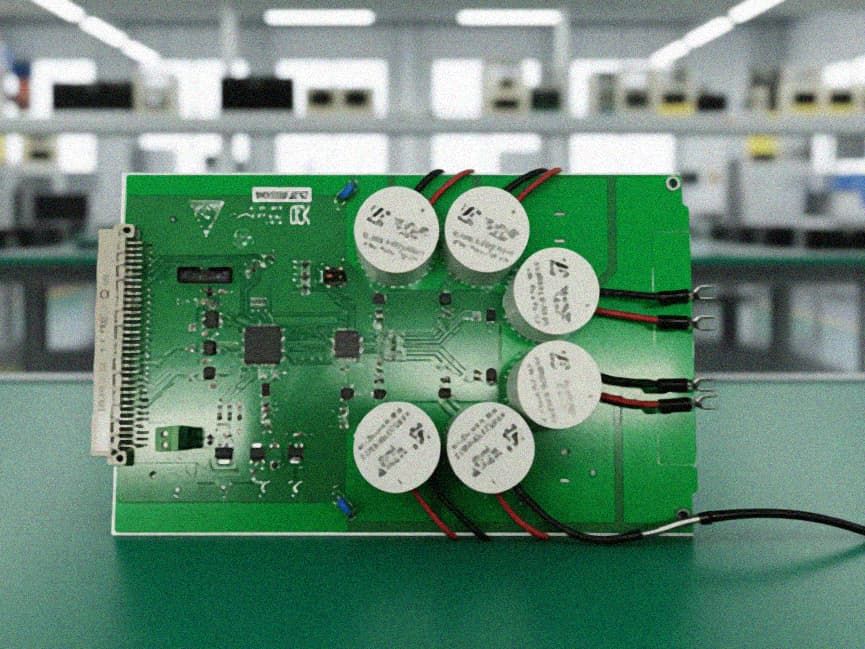

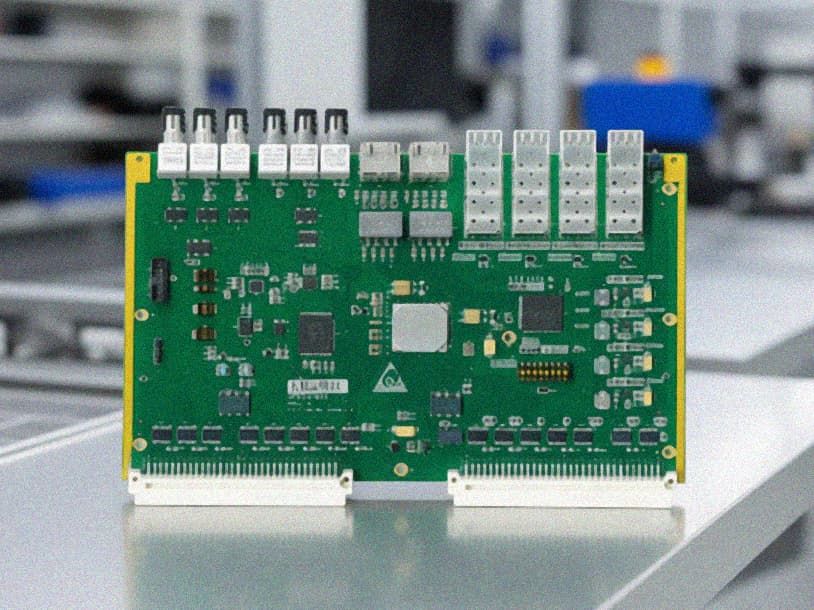

This case includes two types of Acquisition boards: Converter Valve Acquisition Board and Current Transformer Acquisition Board. The functional descriptions of the two are exactly the same. Both are used for high-precision signal acquisition from the input end of the converter valve and the current transformer (CT), and support the main analog signal processing of the 125kW converter valve controller and the SVG controller.
Its core features include:
These acquisition boards provide a reliable and accurate data foundation for the power system, ensuring the stable operation of key equipment.

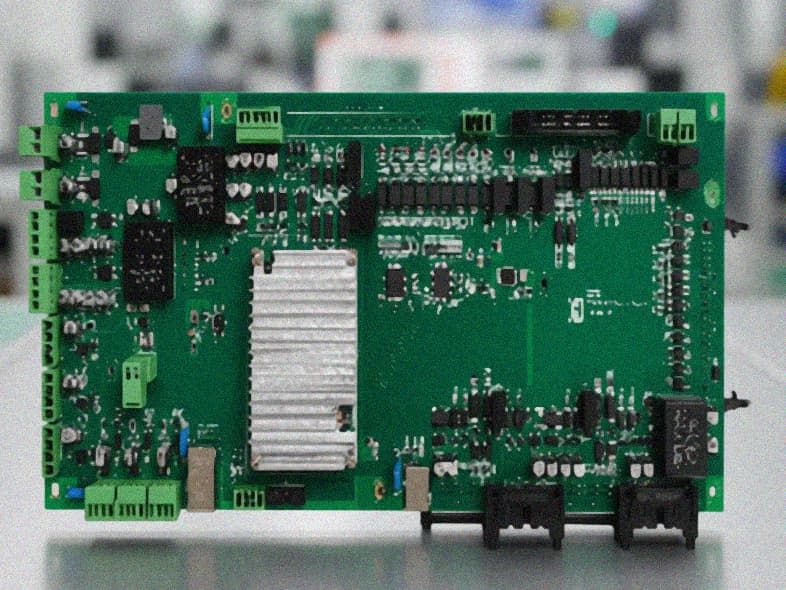

The case contains two types of Control boards: Converter Valve Control Board and CPU Control Board, which are exactly the same in terms of technical specifications and functional descriptions.
As the main control unit of the 125kW converter valve, the control board adopts Xilinx high-speed FPGA SoC, with a maximum clock frequency of 766MHz, and has a powerful high-speed signal processing capability. The development process covers the complete system Design, schematic design and PCB design processes, and performance optimization is carried out through DFX (Design for Excellence) simulation.
In addition, this control board achieves a 90% proportion of domestic components, and all components are manufactured using the SMT surface mount technology, significantly enhancing assembly efficiency and product reliability. It is widely applied in the power industry, providing efficient and stable control solutions for key equipment.
| Board Card Name | Type | Core Functions and Application Scenarios | Key Technical Features |
|---|---|---|---|
| Optical Conversion Communication Board | Communication Board | High-speed Optical signal Communication between 125kW converter valve and SVG controller | High-speed optical signal processing; ICT/FCT testing; High-temperature aging and vibration testing; Ensure long-term trouble-free operation |
| Converter Valve Acquisition Board | Acquisition Board | High-precision Acquisition of Converter Valve and CT input signals for main analog signal processing of 125kW controllers | High-speed ADC; Low-current high-precision acquisition; PLM optimization selection reduces costs and delivery cycles |
| Current Transformer Acquisition Board | Acquisition Board | The function of Current Transformer Acquisition Board is exactly the same as that of Converter Valve Acquisition Board | Same as above |
| Converter Valve Control Board | Control Board | 125kW converter valve main Control Board | Xilinx FPGA SoC (766MHz); Full-process design of system/schematic diagram /PCB; 90% domestic production rate; DFX simulation optimization; Full SMT process |
| CPU Control Board | Control Board | The CPU Control Board has exactly the same functions as the Converter Valve Control Board | Same as above |
The above components together form a high-performance and highly reliable hardware platform for new energy power systems, providing solid support for the stable and efficient operation of converter valves and SVG controllers, and reflecting the dual pursuit of autonomy and controllability as well as engineering reliability in the field of key power equipment.
