In the field of automotive electronics, ensuring the high reliability, precise control and anti-interference capability of components is of vital importance. This case provides a detailed introduction to four types of key circuit board assemblies - driver boards, power boards and filter boards, which respectively undertake the important responsibilities of motor control, power management and signal purification. All information is strictly compiled based on the provided content and no fictional data or speculation has been added.

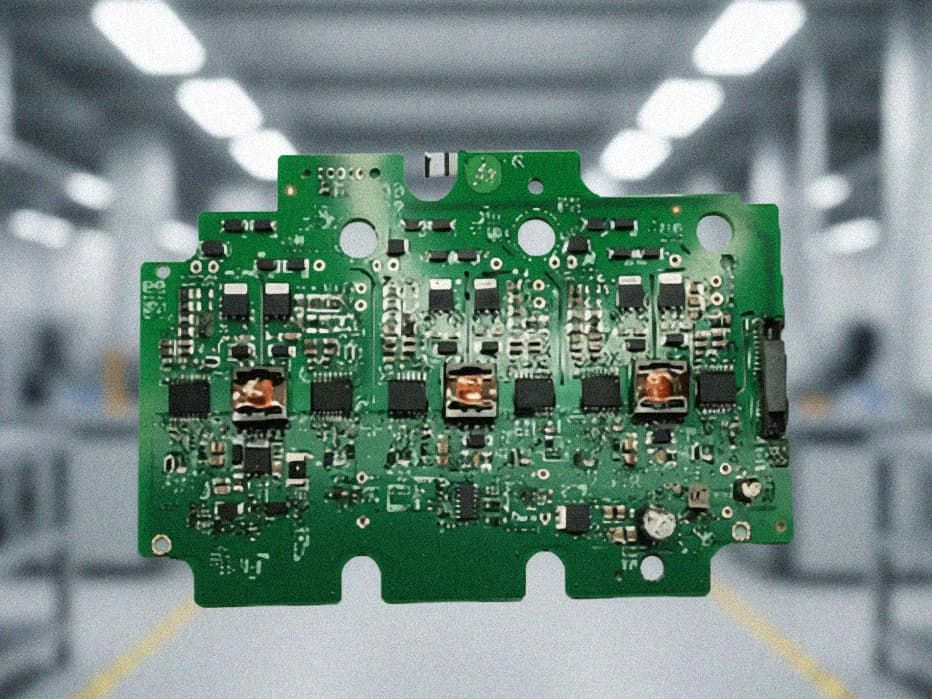

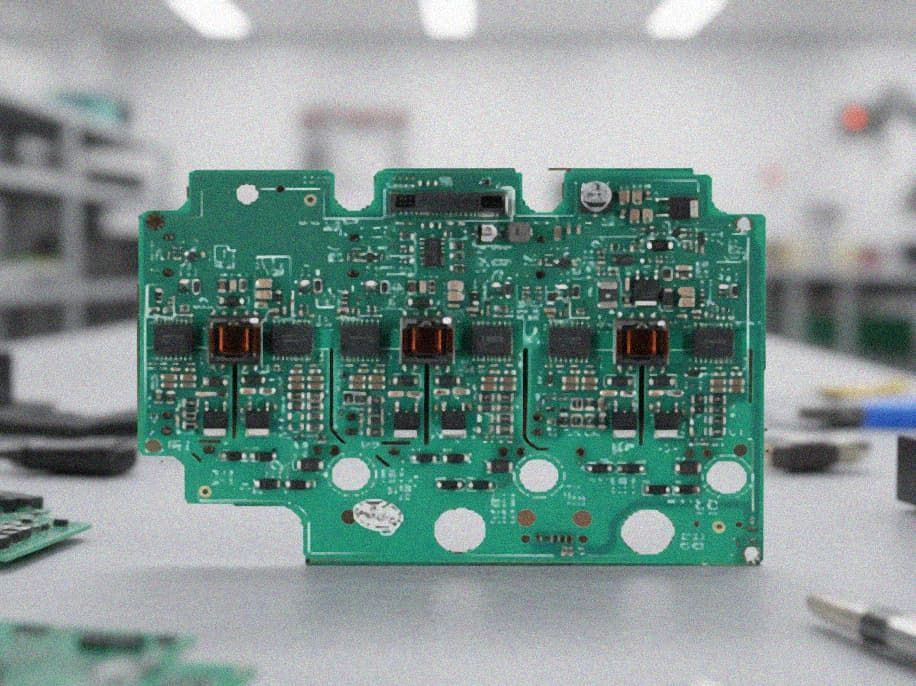

The Inverter Driver Board is widely used in automotive electronics and mainly includes two types: motor driver boards and inverter driver boards. The former is responsible for the operation and control of the motor, while the latter focuses on power conversion and adaptation.
This product is made of strictly selected automotive-grade components and undergoes highly reliable welding processes, protective coatings and comprehensive testing to ensure its long-term stability and safety. The design adheres to compliance and high-quality delivery standards, providing efficient and reliable support for motors and inverter systems, thereby enhancing performance and reliability in automotive electronics applications.

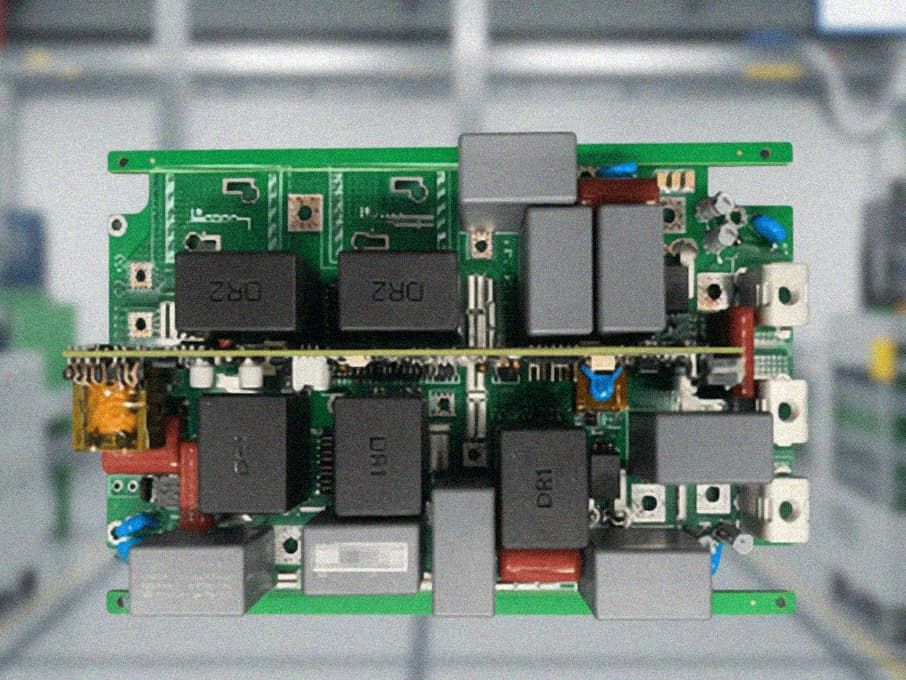

This case includes two Power boards: AC Power Board and DC-AC Power Board, which are completely consistent in terms of functional description and technical characteristics.
These power boards are controlled by fully digital DSP to achieve precise and rapid power management. The operating parameters CAN be configured or adjusted by the upper-level monitoring unit through the CAN interface, and the output voltage can be quickly set through the software. In addition, it supports online remote firmware upgrade and integrates multiple protection mechanisms such as over-temperature derating, overcurrent and short-circuit protection.
Its core highlights include:
These features make it an ideal choice for automotive electronic applications.

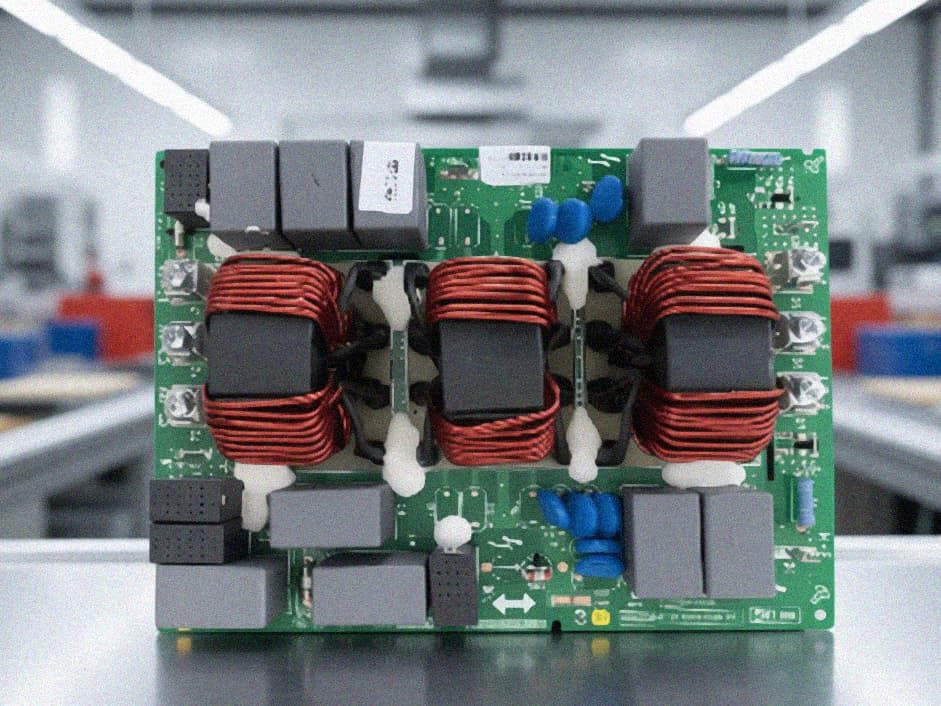

This case contains two types of Filtering boards: Electromagnetic Filtering Board and Signal Filtering Board, and the technical specifications and functional descriptions of both are exactly the same.
The filter board is designed to eliminate high-frequency noise mixed in low-voltage, low-current analog or digital signals, while effectively suppressing conducted and radiated electromagnetic interference generated by high-current, high-voltage switch circuits such as power supplies or inverters.
The key technical features include:
This solution is highly suitable for automotive electronic products that require stable and noise-free signal performance.
| Board Card Name | Type | Core Function | Key Technologies and Performance Parameters |
|---|---|---|---|
| Inverter Driver Board | Driver Board | Control motor operation and power conversion | Automotive-grade components; High-reliability welding; Protective coating; Comprehensive test |
| AC Power Board | Power Board | Digital DSP control, CAN interface adjustment, remote firmware upgrade, multiple protections | Automotive-grade PCB design; Precision welding; DFXW Reliability Analysis |
| DC-AC Power Board | Power Board | The DC-AC Power Board has exactly the same functions as the AC Power Board | Same as above |
| Electromagnetic Filtering Board | Filtering Board | Eliminate high-frequency noise, Suppress electromagnetic interference | High-precision SMT mounting; PLM optimization component selection; Comprehensive environmental testing |
| Signal Filtering Board | Filtering Board | The Signal Filtering Board functions exactly the same as the Electromagnetic Filtering Board | Same as above |
The above-mentioned various types of boards together form a solid foundation for automotive electronic systems. From motor drive, power regulation to signal purification, every link has been meticulously designed and strictly tested to meet the high standards of modern automobiles for electronic subsystems. These components not only enhance the overall performance and safety of the vehicle, but also demonstrate the ability to maintain stable operation in complex environments.
